How to Vacuum Down a Car Ac System

A properly functioning car AC system keeps you cool on hot days, but over time, moisture and debris can accumulate inside the system. Vacuuming down the AC system removes air and moisture, ensuring efficient cooling and preventing corrosion or blockages. This process is essential for maintaining peak performance and extending the lifespan of your AC components. Whether you’re troubleshooting weak airflow or preparing for refrigerant recharge, following the right steps makes all the difference.

This table gives you a quick snapshot of timing and expectations. Now let’s go through each step in detail.

Key Takeaways

• Step 1: Use a high-quality vacuum pump and manifold gauge set designed for automotive AC systems.
• Step 2: Connect the hoses correctly—blue for low pressure (suction side), red for high pressure (discharge side).
• Step 3: Run the vacuum pump for at least 30–45 minutes to remove air and moisture from the system.
• Step 4: Monitor vacuum levels; a stable reading below 500 microns indicates a successful evacuation.
• Step 5: Isolate the system and hold the vacuum for 15–30 minutes to test for leaks or seal integrity.
• Step 6: Reconnect the service port and proceed with refrigerant charging if needed.
• Step 7: Dispose of old refrigerant responsibly—never vent it into the atmosphere.

Quick Answers to Common Questions

Tip/Question?

Answer: Yes! You can reuse the same vacuum pump for multiple cars, but make sure to change the oil regularly and clean the intake filter to prevent cross-contamination of moisture or debris.

Tip/Question?

Answer: Always wear eye protection when working with AC systems. Refrigerant can cause serious eye injury if it sprays during disconnection.

Tip/Question?

Answer: Use UV dye kits to trace leaks after vacuuming. The dye fluoresces under black light, making hidden leaks easy to spot without disassembling components.

Tip/Question?

Answer: Never leave the AC system open to the atmosphere overnight. Moisture absorption happens fast—ideally, recharge within 30 minutes of completing the vacuum.

Tip/Question?

Answer: Keep detailed records of your AC service history. Note dates, refrigerant type, oil used, and vacuum results. This helps diagnose recurring issues and ensures compliance with EPA regulations.

Step-by-Step: How to Vacuum Down a Car AC System

1. Prepare Your Workspace and Safety Gear

Work in a clean, well-ventilated area away from open flames or sparks. Automotive refrigerants are flammable and toxic when heated. Always wear safety glasses and gloves to protect against chemical exposure and accidental hose disconnections.

2. Locate and Access Service Ports

Most vehicles have two service ports:
– High-pressure side (red): Usually near the compressor or receiver-drier
– Low-pressure side (blue): Typically close to the firewall or under the dash

Refer to your owner’s manual or use an AC service port locator tool to confirm locations. Never force connections—use the correct adapter if needed.

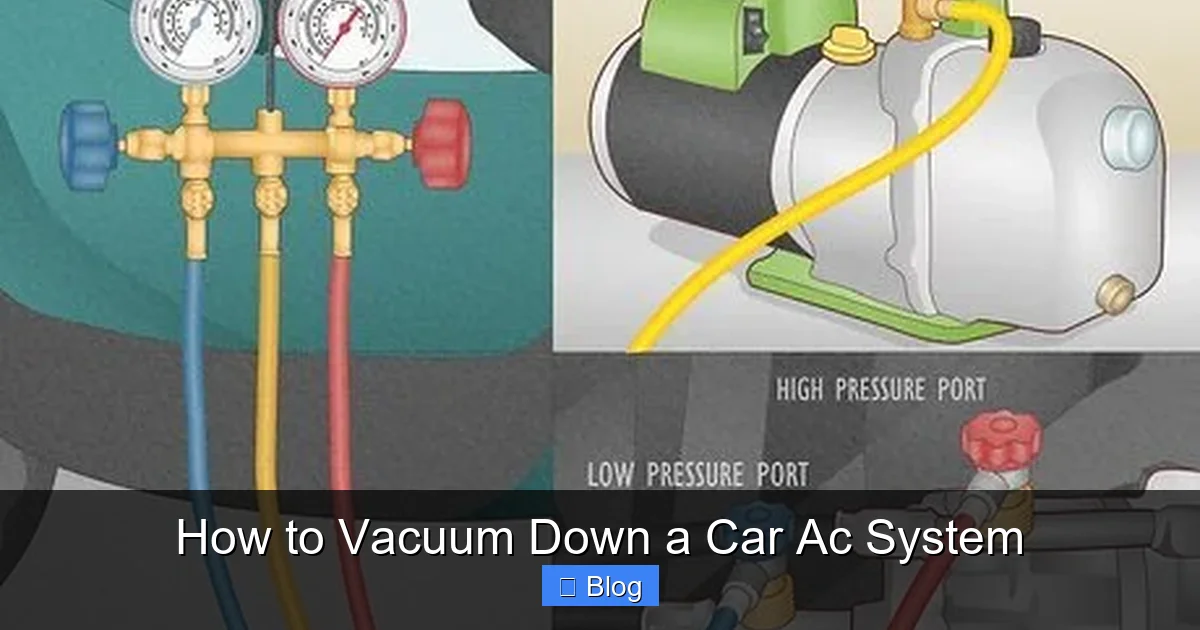

3. Connect the Manifold Gauge Set

Attach the blue hose to the low-pressure port and the red hose to the high-pressure port. Tighten hand-tight plus one-quarter turn with a wrench. Attach the yellow hose (center port) to the vacuum pump’s intake port. Ensure all connections are snug but avoid over-tightening, which can strip threads.

4. Open the Valves and Start the Pump

Turn both the high- and low-side manifold valves counterclockwise to “OPEN.” Start the vacuum pump and monitor the gauges. You should see the vacuum rise rapidly at first, then stabilize as moisture begins to condense inside the pump’s water trap or filter.

5. Run the Vacuum for 30–45 Minutes

Aim to reach a vacuum level below 500 microns. Some advanced systems require under 250 microns. During this time, listen for changes in pump noise—a rising pitch may indicate water accumulation. If your pump has a water trap, check and drain it periodically.

6. Perform a Leak Check (Hold Test)

Once stabilized, close both manifold valves and shut off the pump. Watch the vacuum gauge for 15–30 minutes. A drop in vacuum suggests a leak or trapped moisture that hasn’t fully evaporated. If the vacuum holds steady, the system is sealed and ready for refrigerant.

7. Disconnect and Store Equipment Safely

Open the valves again to release residual vacuum, then disconnect hoses. Cover service ports with protective caps to keep dirt out. Clean all tools and store them in a dry place.

Pro Tips for Best Results

• Use a digital micron gauge: Analog gauges can be imprecise. A true micron reading (< 500 µ) confirms deep evacuation.
• Check for frost or ice: During vacuum, if you see frost forming on the lines, it means moisture is still present—continue pumping.
• Never skip the hold test: Many DIYers rush past this step, but it’s the best way to catch micro-leaks before adding refrigerant.
• Work quickly after vacuuming: Once the system is open to atmosphere, it can absorb moisture within minutes—so reconnect and charge promptly.

Troubleshooting Common Issues

Even experienced technicians run into hiccups. Here’s how to handle them:

How to Vacuum Down a Car AC System: A Complete Step-by-Step Guide

Your car’s air conditioning system does more than just blast cold air—it protects internal components from moisture, contaminants, and corrosion. Over time, dust, humidity, and even small amounts of refrigerant oil can mix with leftover moisture, creating sludge or ice inside the evaporator or expansion valve. This not only reduces cooling efficiency but can also damage the compressor.

That’s where vacuuming down the AC system comes in. By removing air and moisture using a professional-grade vacuum pump, you prepare the system for safe and effective recharging. This process ensures optimal performance and helps prevent future issues. In this comprehensive guide, we’ll walk you through exactly how to vacuum down your car’s AC system like a pro—even if you’re doing it yourself for the first time.

Why You Should Vacuum Your Car’s AC System

When your AC isn’t blowing cold enough, many assume it’s just low on refrigerant. But if moisture has entered the system—especially after a repair or long-term storage—the problem may be deeper. Moisture reacts with refrigerant to form acids that corrode metal parts. It can also freeze inside tiny passages, blocking flow.

Vacuuming eliminates these risks by:

• Removing non-condensable gases (mainly air)
• Extracting moisture vapor
• Checking for leaks under vacuum (a strong sign of system integrity)
• Preparing the system for new refrigerant with proper oil balance

Skipping this critical step can lead to premature compressor failure, poor cooling, or costly repairs down the road. So let’s get started!

Tools and Materials You’ll Need

Before diving in, gather the right equipment. Not every vacuum pump will do—automotive AC systems require specific tools designed for high suction and moisture extraction.

Here’s what you’ll need:

• Automotive AC vacuum pump (with built-in oil filtration)
• Manifold gauge set (with hoses rated for R-134a or R-1234yf)
• Refrigerant recovery machine (optional but recommended)
• Digital micron gauge or leak detector
• Safety gloves and goggles
• Service port adapters (for different vehicle models)
• New O-rings and lubricating oil (if opening the system)

Quick Reference: Vacuum Process Overview

Typical Vacuum Process Timeline & Key Metrics

Step	Duration	Target Vacuum Level	Purpose
Connect hoses & open valves	2–3 minutes	N/A	Prepare system for evacuation
Run vacuum pump	30–45 minutes	Below 500 microns	Remove air and moisture
Hold vacuum (leak check)	15–30 minutes	Stable reading	Verify no leaks or outgassing
Disconnect & isolate	1 minute	N/A	Close valves and prepare for charging

• Vacuum won’t hold: Likely a leak. Recheck all connections, especially around O-rings and service ports. Use soapy water to bubble-test suspect areas.
• Pump runs but no vacuum builds: Hoses may be disconnected or valves closed. Double-check fittings and valve positions.
• Moisture returns during hold test: The system may still contain moisture or have a slow leak. Repeat evacuation for another cycle.
• Gauge fluctuates wildly: Could indicate a faulty pump valve or internal leak in the manifold set. Inspect seals and replace if worn.

When to Call a Professional

While DIY vacuuming is feasible for routine maintenance, consider hiring an ASE-certified technician if:

• The system has been open for more than 48 hours
• You suspect internal component damage (e.g., seized compressor)
• You’re working with R-1234yf refrigerant (specialized handling required)
• You lack experience with high-vacuum procedures

Professional shops use advanced equipment like electronic leak detectors and vacuum pumps with molecular filters, giving results you can’t always replicate at home.

Conclusion

Vacuuming down your car’s AC system is a straightforward yet vital procedure that pays off in reliability, efficiency, and longevity. By removing air and moisture, you create ideal conditions for fresh refrigerant and healthy oil circulation. Whether you’re troubleshooting weak cooling or performing seasonal maintenance, taking the time to follow these steps ensures your AC works like new.

Remember: quality tools, patience, and attention to detail make all the difference. And always prioritize safety—refrigerants are powerful chemicals that demand respect. With this guide in hand, you’re equipped to maintain your vehicle’s comfort system like a pro.
